Syntax colors

Syntax colors are optional. Enable the syntax feature to get bundled Syntect grammars and two-face themes. You pick a language and theme; the library tokenizes the source and maps colors onto the diff’s original bytes.

cargo add ratatui-diff --features syntax

Default builds don’t include these dependencies. Native Oniguruma compilation needs a C toolchain.

Before and after

Without syntax colors, context lines use the theme’s plain foreground:

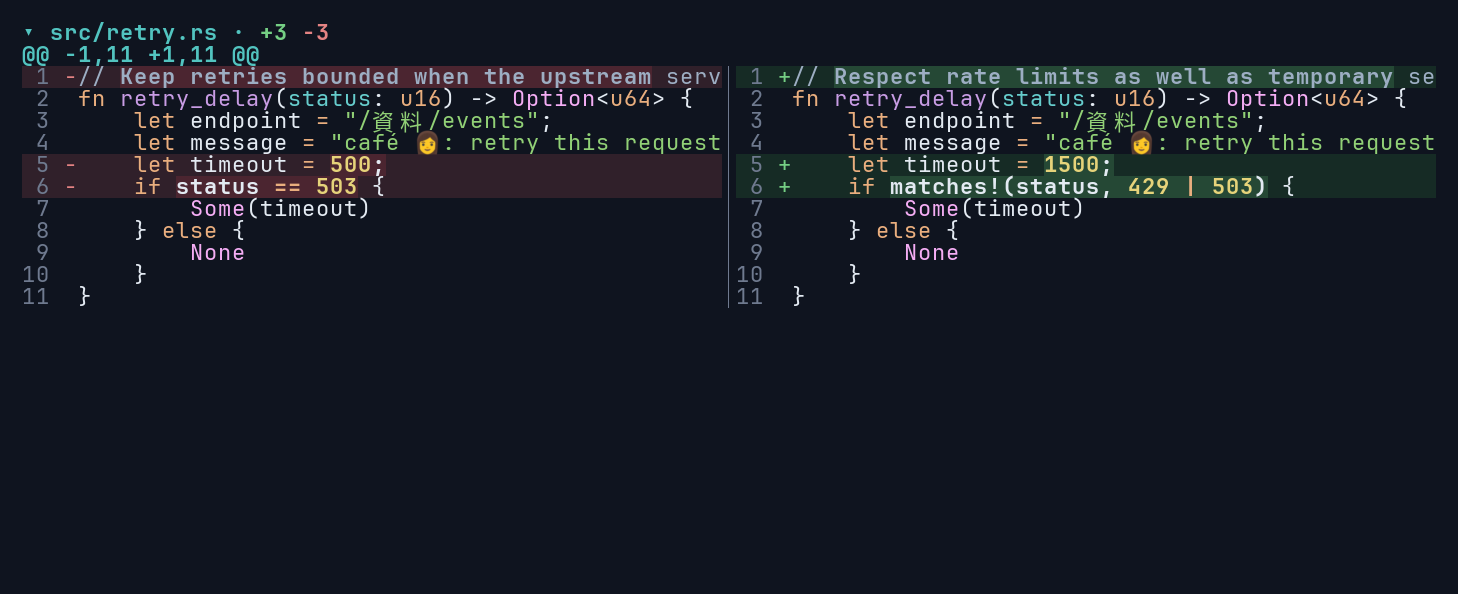

With the Coldark-Dark theme, adjusted for contrast against Aardvark Ink:

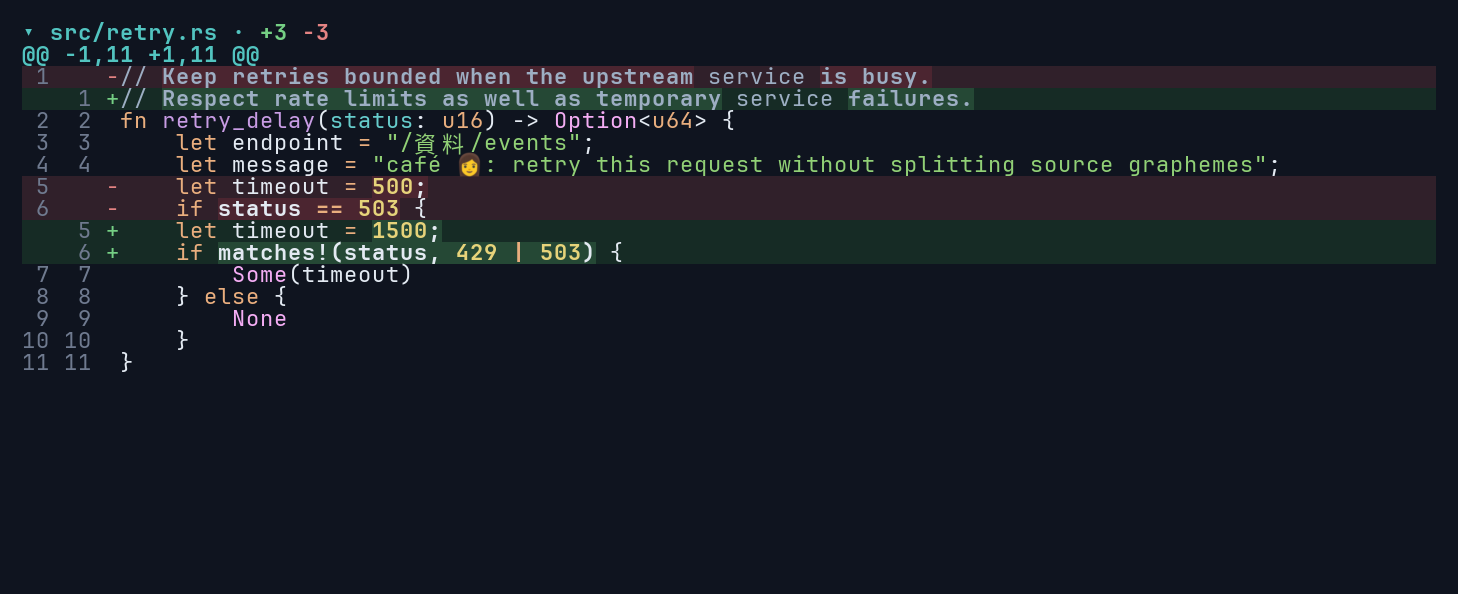

Syntax colors sit underneath diff styling, so row backgrounds and changed-word emphasis stay intact in unified view too:

Prepare, then attach

Preparation tokenizes the source and is the expensive step. Do it outside the draw callback, keep the resulting SyntaxStyles, and borrow it from each frame’s Diff.

use ratatui_diff::{Diff, DiffDocument, DiffTheme, FileSyntax, SyntaxHighlighter, SyntaxSource};

let old = "fn retry() { let timeout = 500; }\n";
let new = "fn retry() { let timeout = 1500; }\n";
let document = DiffDocument::from_text(old, new);
let theme = DiffTheme::aardvark_ink();
let highlighter = SyntaxHighlighter::bundled("Coldark-Dark")?.contrast_with(theme)?;
let styles = highlighter.prepare(
    &document,
    &[FileSyntax {
        file: 0,
        language: "rs",
        source: SyntaxSource::Full { old, new },
    }],
)?;
let diff = Diff::new(&document).theme(theme).syntax_styles(&styles)?;

language accepts a file extension or a syntax name. SyntaxHighlighter::themes() and highlighter.languages() list the bundled choices. Files you leave out of the request render without syntax colors.

SyntaxStyles owns its output. You can drop the source strings and the highlighter after preparation. Styles attach only to the document they were prepared for (or a clone of it). Replacing the styles, for example after a theme change, keeps scrolling, selection, search, and folds.

Full or retained source

Source	Accuracy
SyntaxSource::Full { old, new }	Parses omitted lines too, so multiline comments and strings work
SyntaxSource::Retained	Best effort; parsing resets at each gap in the document

Use Full when you have the complete files. Retained is for patch-only input, where a hunk can start inside a comment or string the parser never saw.

Contrast

Bundled themes keep their own foreground colors by default. contrast_with(theme) adjusts any foreground that falls under 4.5:1 contrast against the diff’s context, insertion, deletion, and changed-word backgrounds, mixing it toward white or black. Colors that already pass are unchanged. Syntax backgrounds and underlines are discarded; bold and italic are kept. Search and selection overlays still draw on top.

Limits

By default, preparation accepts up to 64 MiB of input, 64 KiB per line, and one million retained spans. Use SyntaxLimits for stricter bounds. Limits bound memory and input size, not regex time, so schedule preparation for large inputs on a worker.

Licenses

The bundled grammars and themes carry their own license terms. If you distribute an application with the syntax feature, include the text returned by SyntaxHighlighter::acknowledgements(). The viewer prints it with cargo run --example viewer --features syntax -- --syntax-licenses.
